Customizing the DoD:S Hud

updated steampipe

Start here to learn about modifying the Day of Defeat:Source HUD !

Updated for the new SteamPipe release April 2013.

Traditionally players describe the GUI, (Graphic User Interface) as the Main Menu area where the options, server and create game panels are. The HUD, (Heads Up Display) is described as  the game panel area. The information below is a good starting place for the GUI and the HUD.

Reading this first is critical if you want to make a set of files that work, boring to start with but needed... sorry but that's how it is !

This may be too much effort for some, others with enjoy the below info'. Well, you could always download one too, I have some in the downloads section of this site, there is also a very active thread on ZeroPoint Gaming.

 Sections in this article.

1. How and where to get the files to edit

2. List of the files and what they do

3. The tools you will need

4. Limits to what you can edit and why

5. Before you start Editing files

How and where to get the files to edit

You will need to understand how the game folder works in steam games first. Navigate to...

64 Bit systems...
C:\Program Files (x86)\Steam\steamapps\common\Day of Defeat Source\dod
32Bit systems...
C:\Program Files\Steam\steamapps\common\Day of Defeat Source\dod

The game folder has some files in it now but not all the ones you need. Steam games used GCF file format in the past. This has now been replaced by the VPK file format assisted with "loose" files, (files that cannot work through the vpk format like .ttf fonts) in the game folder.

The VPK file we need is located at...

64 Bit systems...

C:\Program Files (x86)\Steam\steamapps\common\Day of Defeat Source\dod\dod_pak_dir.vpk

32Bit systems...

C:\Program Files\Steam\steamapps\common\Day of Defeat Source\dod\dod_pak_dir.vpk

You need to use a special file viewer and extractor to look inside and extract files from the VPK file. You can go here and find out about GCFScape before you continue, or if you think you have a good handle on it get GCFScape now install, and have a play with it. Basically you use GCFScape to look into the vpk file and browse the files inside, if you need one just select and extract or just drag and drop the files or folders out.

 You would have looked at the dod_pak_dir.vpk now and found the "dod" folder, ("dod" is named "root" inside the viewer) and all the files and directories under it. You may have noticed it looks the same as the game folder structure...with more files and folders.

Important SteamPipe note, the "custom" folder is now the "dod" folder ! : In the pre SteamPipe game folder we used to just insert the changed files into dod\resource or scripts or materials, that is now changed. We now need to insert ALL files changed into ... dod\custom\tut_hud ...or what ever name you like under the custom folder.

If you make a new folder, name it anything you like in the custom folder, that folder you made is now the same as the dod folder, just follow the same folder structure as "dod" and files in there will work.

Why did they introduce the .vpk ? The reason is in the readme in the custom folder, the GCF format had a huge loading time, the VPK format does not. The custom folder complicates things a liitle but there are benefits...

  • The custom folder is not overwritten in a huge update.
  • The custom files are all in one folder, "dod\custom"
  • You can separate your skins and hud files...just make a separate folder inside dod\custom and they will work.
  • You can make a .vpk file for your content... but for HUDs you must leave out fonts and some other files... basically any file type VALVe did not place in the VPK file and supplied "loose", you should do the same!
  • In the future your package can have a unique identification if supplied as a .vpk. That means your work may be submitted to future Steam Workshop categories and identified as a unique file. I don't know if they will ever do that...they certainly do intend to set it up for older games like dods and CSS.
  • Files for CSS, DoD:s, TF2 are now seperated more.... remember everytime TF2 updated and broke all games? Well no more of that now... thank goodness !

There are some new "rules" too.

  • You don't have to use a VPK format, it does not dramatically reduce loading times for things in the custom folder...that is as far as a set of HUD files go.
  • You may have noticed that some of the files and folder names you pull from a .vpk are all lowercase now, like the ClientScheme.res is now all lower case letters. Lowercase is now important. e.g: dods always had a "UI" folder in capitals, don't use that in a .vpk the files in it will not work !
  • Font files must not be in the .vpk, they will not work, make a vpk if you like but leave the font file in another folder... like dod\custom\fonts. Your files will still find it.
  • DoD:S Linux does not seem to like spaces in the file names, don't name your hud folder "My great Work" name it safe... "my_great_work". Capitals are OK.... but not spaces and some other characters , just play it safe and test... send it to me for testing if you like.

How do I make a .vpk?

  1. Assemble your files correctly in a folder like "tut_hud"
  2. Open... SteamApps\common\Day of Defeat Source\bin and find vpk.exe
  3. Drag and drop the "tut_hud" folder on top of it.
  4. You will now see a "tut_hud.vpk" file next to your "tut_hud" folder.
  5. Don't forget.... don't include font files, supply them in another folder... "fonts" inside the custom folder.
  6. Naming files is important if you want the Linux users to use them, stick to safe names and avoid spaces and special font characters.

List of the files and what they do

To effect a change and customise the HUD we need to get the standard files out of dod_pak_dir.vpk and into the dod\custom\tut_hud folder. Don't be messy and extract the whole lot, it is not required, lets just get what we need. You will have to make some folders in your dod\custom\tut_hud folder first. The basic structure is...

main folders dods hud

Note the dod\custom\tut_hud folder, you need to place all your files to edit in the "tut_hud" folder, that is where they will work best!

The folders to make inside the "tut_hud" folder are "resource" and make a "ui" folder inside the resource folder. Then the "scripts" folder. Now you can extract or drag and drop the files from the cstrike_pak_dir.vpk ...

resource folder... clientscheme.res

resource\ui folder... scoreboard.res

scripts folder... hudlayout.res and hudanimations.txt

There are more you can use and edit but these four files are the backbone of any custom HUD.

clientscheme.res will allow you to edit colors and backgrounds, position of the Day of Defeat Source logo on the main screen, fonts and boarders.

hudlayout.res is a file that holds background and icon positions and sizes, some major panel positions, sizes and backgrounds, font names.

hudanimations.txt is a file that animates items in the HUD, it also has a few colors that need to be edited to match your changes in the clientscheme.res

scoreboard.res is just for the scoreboard, many small items can be moved, re-sized and colors changed, font and background edits are also possible.

The edits to those files need their own section each, lets continue with what you need to edit them.

The tools you will need

The files need a good text editor, please do not use good ole' windows NotePad, it is not up to the task and I will mention "line numbers" in the tutorial, a good text editor will count the rows in a document and label them automatically, helps when you go to find a line in a 6000+ row text document.

What you need is a freeware text editor, for Windows I recommend NotePad++. Download it here.

Linux and Mac OS take a look at "Kate". To get the line numbers to show and disable "dynamic word wrap"...

  • Richt click on the "Documents" icon (left top of the panel) select "Configure"
  • Select "Appearance" then "General" tab ... Untick "Dynamic Word Warp"
  • Now select the "Borders" tab
  • Tick the "Show line numbers" box.
  • Click "Apply" and "OK"

Windows NotePad++ only... Now you have it installed you can associate .res type files and .txt files. Right click on a .res file, "Open with..." Browse to find Notepad++.exe, usually in "C:\Program Files (x86)\Notepad++\notepad++.exe" make sure you click the tick box "Always use the selected program to open this kind of file". Do the same for the .txt files.

Now you are set up, open the clientscheme.res, notice the numbers beside each row? Now go to the end of the file, see what I mean about finding things? Not all files are as bad as this, but using this with my tutorials will save you heaps of time.

Limits to what you can edit and why

The limits are many, you just can't change some items with the game folder files. That's a big part of customizing HUD's and GUI's, knowing where things are and what the limits are. Take it from me, you can spend hours on looking for a way to alter the color the dods team name colors in the kills and deaths in the top left, there is no way to change that unless VALVe change the .dll files to allow changes.

That is repeated again and again, however you can affect change and sometimes when VALVe does update...they give you a new adjustment here and there, the scoreboard is a example of that, lots of new adjustments but try and make it like it was... not possible :)

While the limits of the files you found in the dod_pak_dir.vpk and other standard loose files may seem depressing don't worry there are heaps of little tricks you will learn to get around things.

Remember I said you could not adjust the team name color of the kills and deaths ? That's true but you can open the clientscheme.res, adjust the font settings (the little images in there are actually fonts) to have a white wash that turns them lighter, or a dark outline, you can make them "Bolder" or Normal just like other fonts. So you can see the more you know, the better you will be at editing.

There is another method a lot of people overlook, the dod_pak_dir.vpk is not the only place you get things from.

Say you want to adjust the Netgraph font and size, you grab the file, scorcescheme.res, out of...

C:\Program Files (x86)\Steam\SteamApps\common\Day of Defeat Source\hl2\resource

Place it in dod\custom\tut_hud\resource folder, edit it and bingo, it is changed. Have a quick peek at this article and you will see how this is done.

This concludes the basic information on GUI and HUD editing tools and basic set up. Next are more articles, one about doing a basic recolor, say a classic blue HUD.


Before you start Editing files...

There are some things you need to know first. Some of the following pages are a must read for beginners!

There is help in a two seperate Tutorial sections... Helpful HUD Customizing Techniques. and Tools that make it easy

Read about the ClientScheme.res file, dodlogo.TTF, and how to position items on the screen with more ease. If you know what you are doing... then please proceed :)

Click on the area link to take you to the appropriate page...

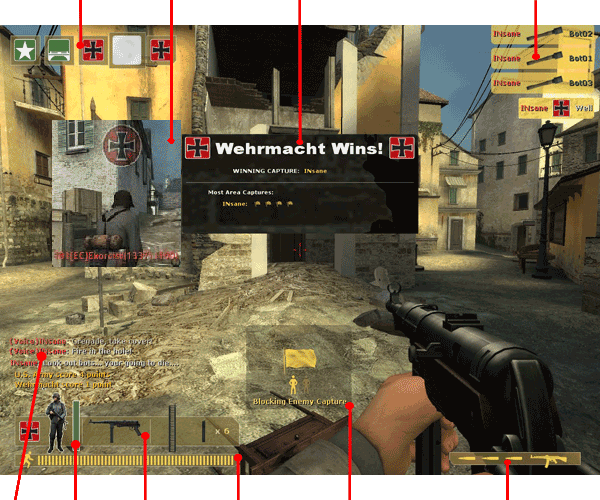

Objective Icons Player Health and ID
